VFFS Machines

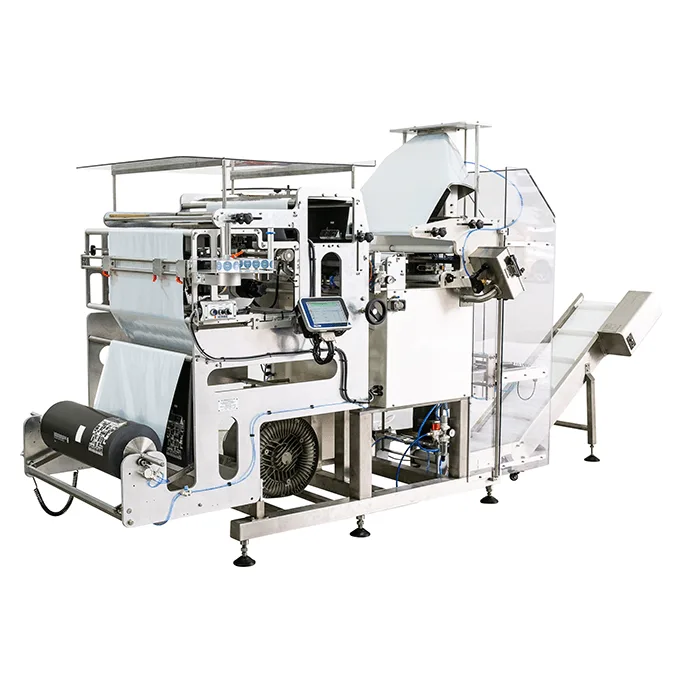

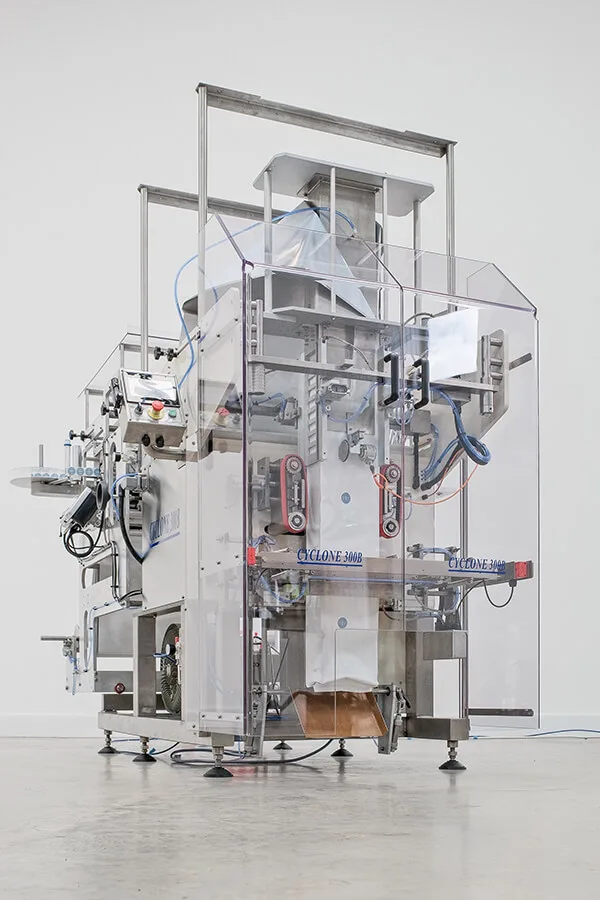

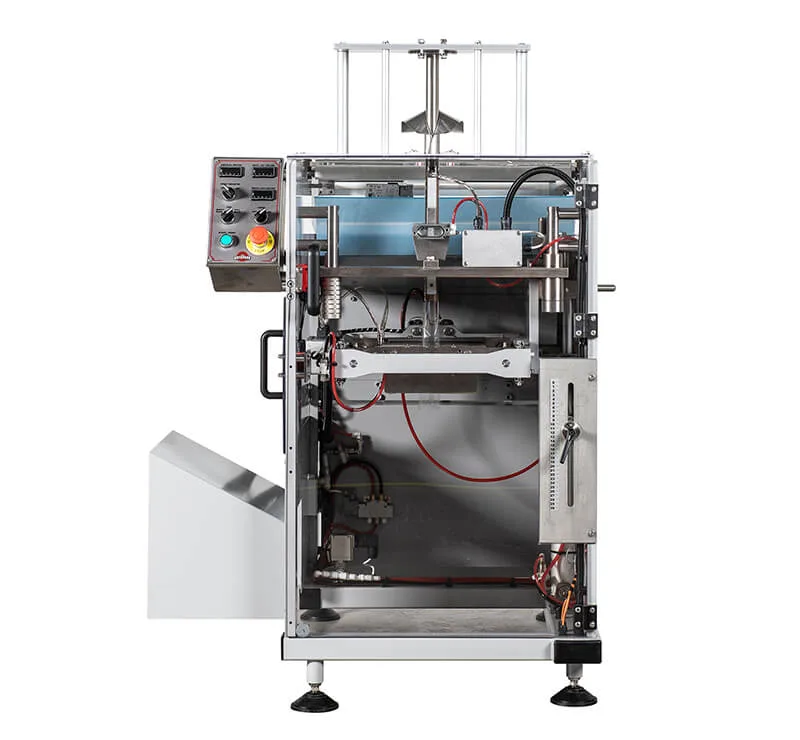

Vertical Form, Fill and Seal Machines (VFFS)
VFFS machines are a type of bagging equipment that creates, fills and seals sachets, pouches and bags with various products across all industries.
A VFFS Machine comprises a product dispenser (auger for powder, weighing machine for solids, depositor for liquids, counter for objects etc.), a film unwinder, a forming and sealing station, a cutting station and an exit conveyor.

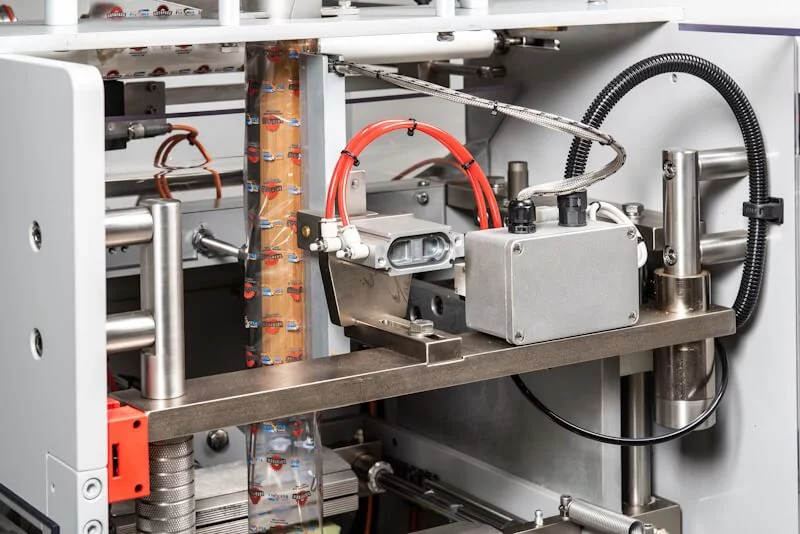

The heat-sealable material is pulled into the machine and the sides are sealed to create a tube. The bottom of the bag is sealed as the synchronised dosing system deposits the product into the newly formed bag. Immediately after this, the top of the bag is sealed and cut from the rest of the film allowing it to drop onto the discharge conveyor and exit the machine. This process is continuous meaning that when one pack is being filled the side and bottom seals are being created simultaneously for the next bag.
These machines can be configured to create varying pack styles including flat sachets and gusseted, block bottom and quad packs. They can also be equipped with printers, labellers, valve applicators and special seals e.g. zip locks.
These machines are ideal for all industries and are extremely economical. See below the parameters of each machine and get in touch to find out more.
VFFS Range
| Model/Feature | A100 | A200 | A300 | A400 |
|---|---|---|---|---|
| Bag Sizes | 60x50mm—200x250mm | 60x50mm—200x580mm | 100x50mm—300x780mm | 100x50mm—400x980mm |
| Bag Types | Pillow Pack |
Pillow Pack Quad pack Gusseted pack Block bottom pack |
Pillow Pack Quad pack Gusseted pack Block bottom pack |
Pillow Pack Quad pack Gusseted pack Block bottom pack |
| Maximum Production | 40 Packs/min | 80 Packs/min | 50 Packs/min | 45 Packs/min |
| Machine Dimensions (Approx. LxWxH) | 1516x980x1370mm | 1488x875x1430mm | 1930x1073x1700mm | 2012x1032x1952mm |

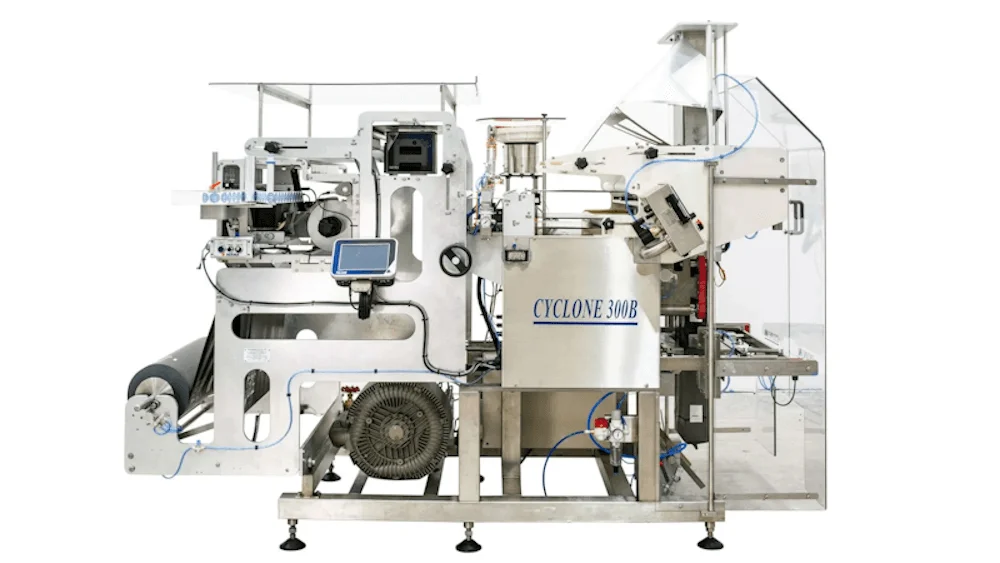

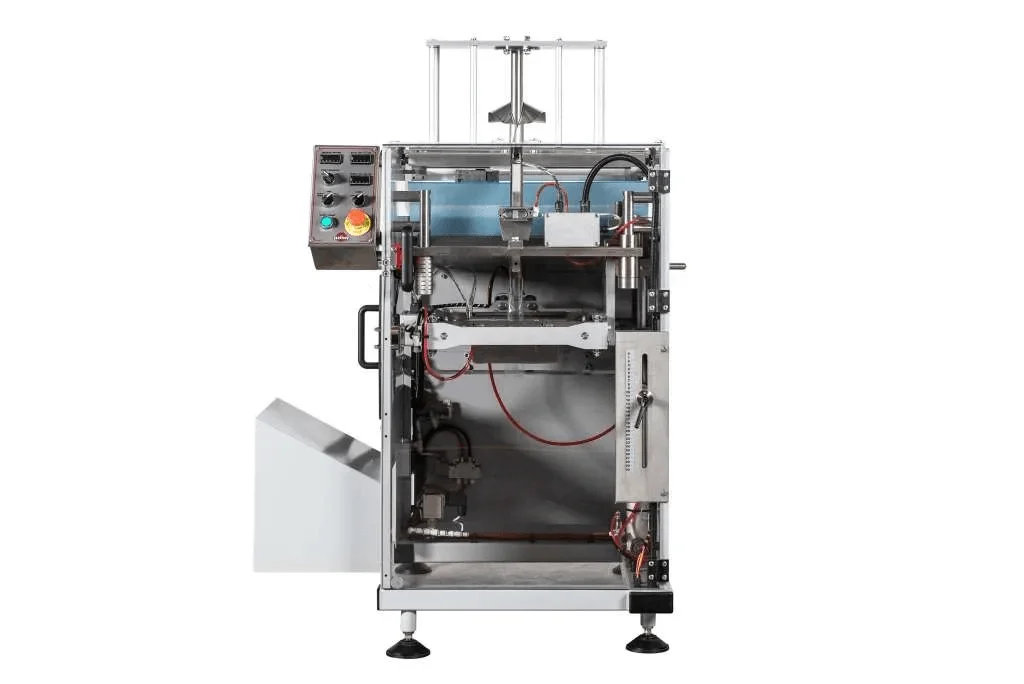

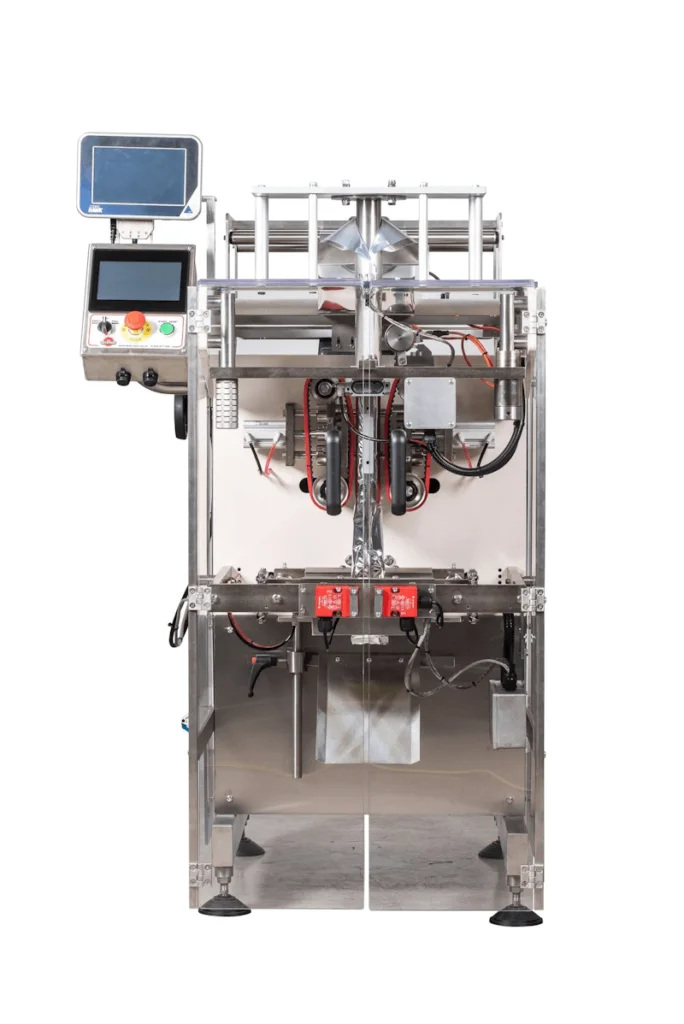

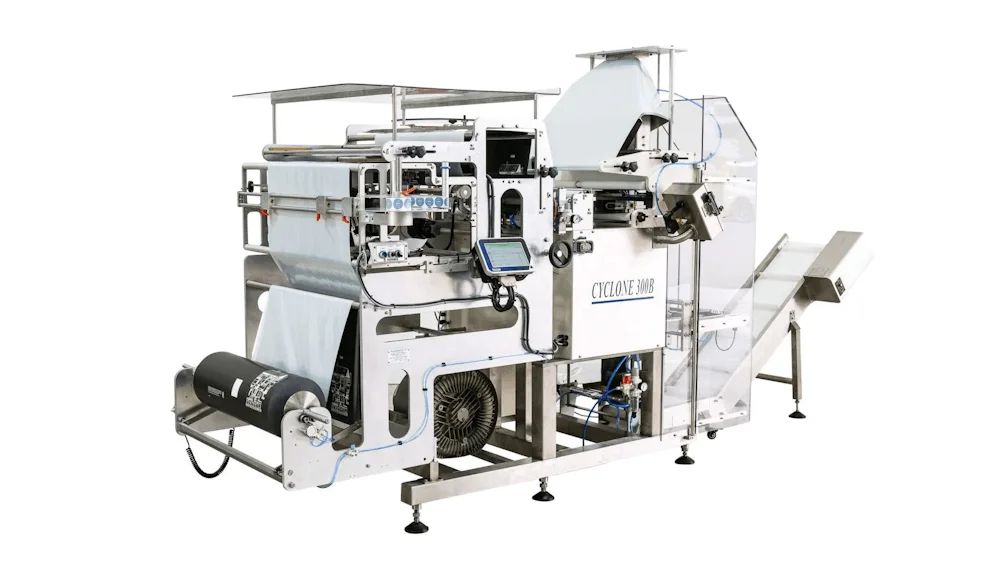

Our Machines
The Benefits
Benefits of Our Vertical Packaging Machines
- Automatic– These machines can be semi or fully—automatic, whatever your facility requires. Through the automa-tion of the bagging process, production rates will dramatically increase whilst minimising worker injury and error.
- Reliable– VFFS machines are designed to continuously run and can be cleaned and maintained easily allowing for minimal downtime.
- Accurate– The integrated dosing system has been created to dispense a preprogrammed quantity of your product time and time again. With specialist measuring technology, you will reduce waste and giveaway without compromis-ing on speed.
- Economical– These machines are low-cost to purchase and to run allowing you to increase production whilst making a quick return on your investment.
- Versatile– Adaptable to a full range of product types and packaging styles and sizes, they are hugely customisable to meet the unique needs of your business.
- Flexible– Even after purchase and configuration, the machine can be used for multiple bag sizes and volume fills. Pack your product into a variety of bag sizes on the same machine.
- Safety– The seals created by our machines keep products safe from spillage, contamination and damage ensuring customer satisfaction and product quality.
- Hygienic– Available in stainless steel, a food-safety compliant machine is available allowing for easy cleaning and hygienic processing.
Our Services
NEW MACHINES
Technosys vertical form fill and seal machines are engineered to exacting standards and use only the highest quality components.
Full Turnkey Projects
If you need a complete solution, we can create a bespoke package. From start to finish, we will form the perfect packaging solution for your product.
Service & Aftercare
We offer a variety of servicing packages to keep your machine running smoothly.
Maintenance & Repairs
No service contract? No problem. We still offer maintenance and repairs on packaging machines.
Refurbished Machines
We also offer refurbished machines. Easier on the budget and still quality assured.
