A400 VFFS Machine

A400 Vertical Form Fill and Seal packing machine.

This is a low-cost, adaptable, fully automatic machine with electrical and pneumatic operation. It is the largest and most complex machine in the range, showcasing great versatility. Its robust construction and operator friendly controls allows for increased efficiency and output whilst reducing costs, human error and down time.

Two pneumatic cylinders create vertical and horizontal seals by moving the sealing jaws and vertical seal into the packaging film whilst the film is moved by two drive belts. This machine configuration allows for a wide range of pack shapes and sizes and so it seen across all sectors. The A400 model is especially ideal for larger bag sizes.

The electrics are controlled by a Mitsubishi PLC and an Exor HMI which has 100 storage programs allowing the quick change of settings between packing bags of differing size and fill volume.

This machine can create packs from 100mm-500mm wide and 100mm-500mm long (980mm with double pull). The bag length is determined by the encoder, which can easily be set within the machine HMI.

The bag length is determined by the encoder, which can easily be set within the machine HMI.

Get a Quote

A400 Machine

Machine Specifications

Explore the detailed specifications of our cutting-edge packaging machinery.

Model

A400

Pack Styles

Size Range (Flat Bag Size)

Width: 100 – 400mm
Length: 100 – 500mm
(Extended M/C 600mm Long)

Maximum Speed

45 packs/min

Power Supply

3 phase
16 amp

Compressed Air

0.6m3 /min
@6BAR

M/C Nett Weight

1100 kgs

Vertical seal 540mm long, made from anodised aluminium.
Sealing jaws 440mm wide (up to 400mm wide pack) made from stainless steel.
Long lasting durable cutting knife, easily removable for cleaning and replacement.
Welded box bar mild steel frame with high grade aluminium plates (available in stainless steel depending on requirements)

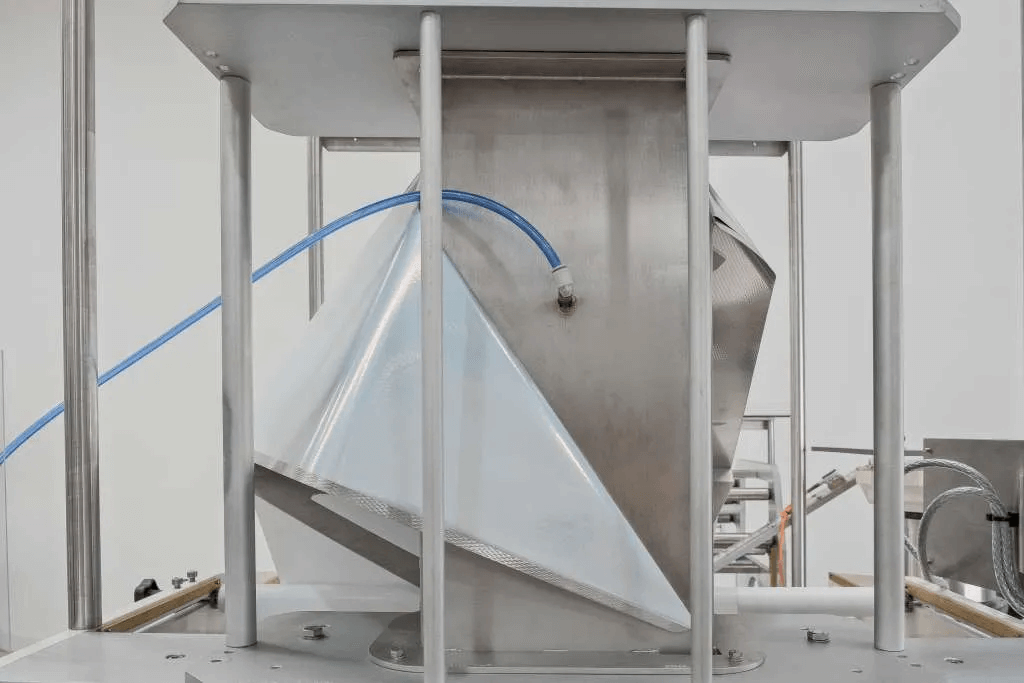

Forming set (depending on customers pack width) for forming the pack from the roll of film.

Vertical seal cylinder pushes the vertical seal bar into the film to create the rear vertical seal on the pack
Jaw seal cylinder pushes the sealing jaws into the film to create the top and bottom horizontal seals on the pack.
Knife cylinders push the cutting knife through the film at the correct time to cut the pack to the correct length.
Brake cylinder stops the film unwinding from reel holder during full operation.
Belt drive cylinders locate centrally against the forming set, allowing the belts to pull the packaging film down.

Mitsubishi PLC for all inputs and outputs.
Mitsubishi temperature controls for the vertical and jaw seals, allowing setting up to 200ºC. Controls use PID control to maintain a constant temperature level.
Viper safety relay wired in with emergency stop and full guarding.
Contactor and overload to control outfeed conveyor.

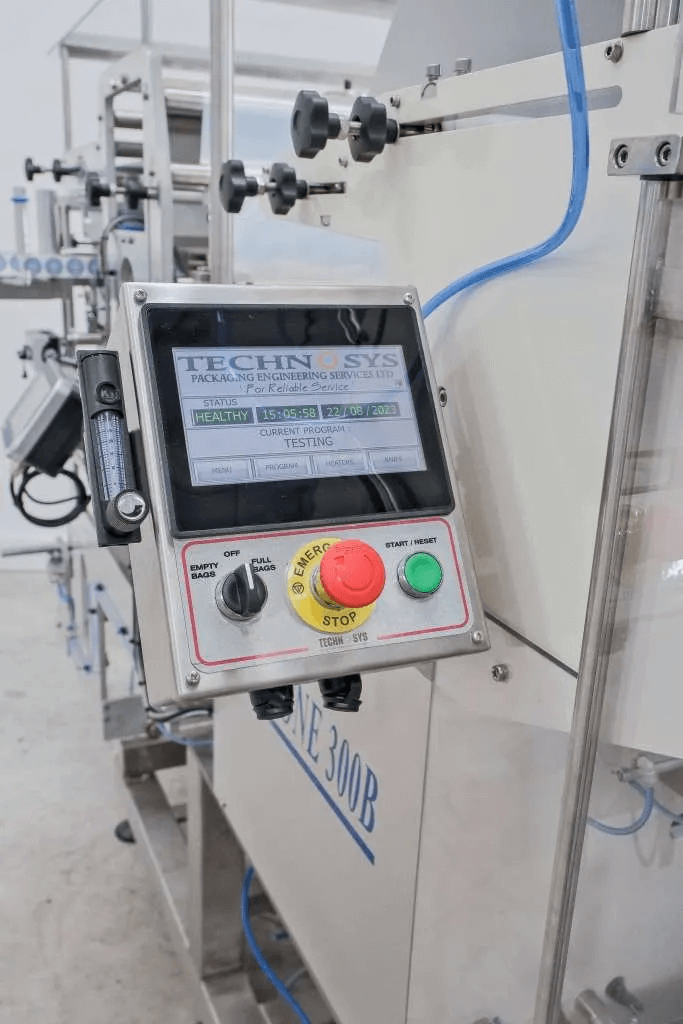

HMI colour touchscreen allowing user to set up and switch between programs.
Sensor for detecting registration mark on the film.
110V electrical cartridge heaters with J type thermocouple in sealed housing for temperature control.

Vertical seal 540mm long, made from anodised aluminium.
Stop category 0 as defined by EN60204-1.
The above offers double redundancy electrically and isolating the pneumatic supply.
Full guarding in place, when opened pneumatic supply is isolated.
Safety sensor on sealing jaws to prevent operation with any obstruction.
Safety gate interlocks prevent operation of machine when opened.
